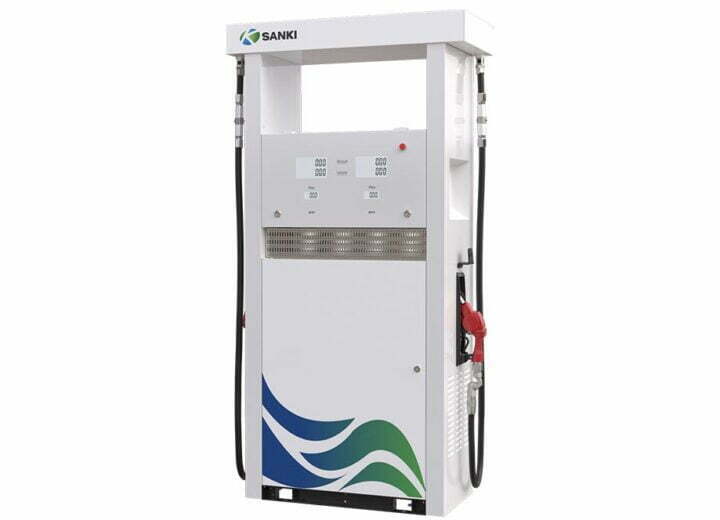

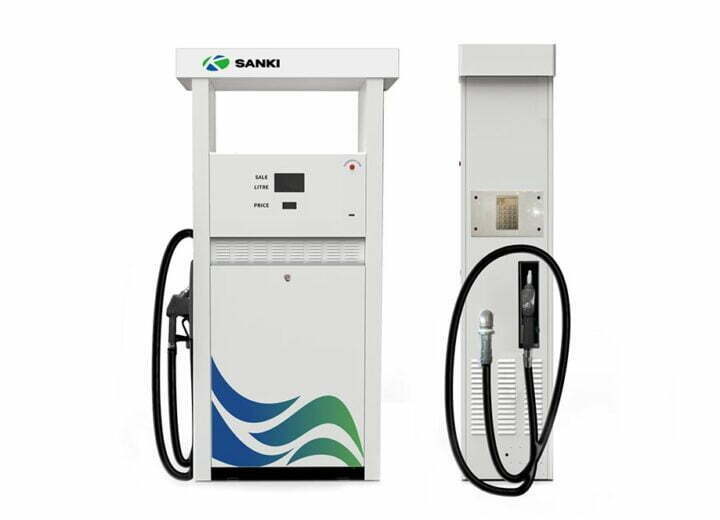

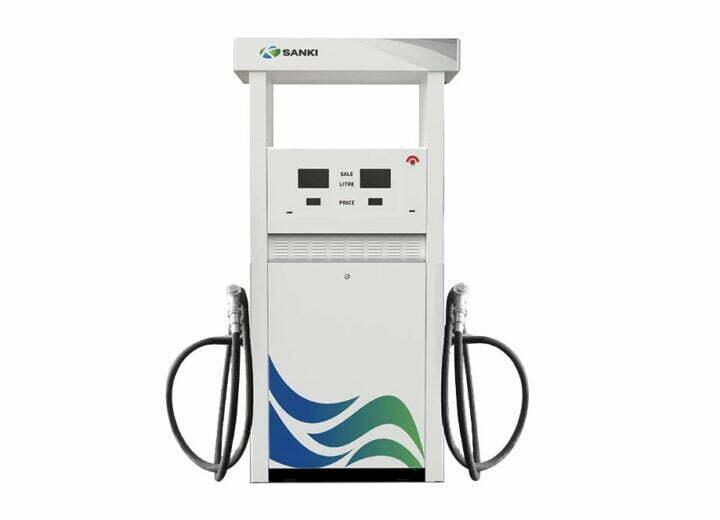

CLASSIC SK-52
Category:
SANKI
CLASSIC Fuel Dispenser
CLASSIC SK-52
Features
- High reliability and durability design
- 1/2 product selections
- 1/2 fueling positions
- High accuracy, OIML/MID certified
- Classic H-Frame design
- 1/2/4 hoses
- Side and Front oriented
- Standard/High/Super High flow rate
- Multiple options and customised features
Specifications
Downloads
Specifications
| Accuracy for the unit | ±0.25% |
| Flow rate | 45~80L/min |
| Ambient temperature | -25℃~ +55℃; -40℃ ~ +50℃ |
| Relative humidity | 20% – 95% |
| Unit noise rate | < 70dB (A); |
| Inlet vacuum rate for suction pump | ≧54kPa |
| Communication | With RS 485 port, or current loop |
| Power supply | AC 220V(-15%~+10%), (50/60±1)Hz ;
AC 380V(-15%~+10%), (50/60±1)Hz |
| Digit of sale | 7 digits (decimal points can be adjusted) |
| Digit of volume | 6 digits (decimal points can be adjusted) |
| Digit of unit price | 5 digits (decimal points can be adjusted) |
| Totalizer of sale | 0~42949672.95 |
| Totalizer of volume | 0~42949672.95 |
| Dimensions LxWxH (mm) | 920x452x2196 |
| Package LxWxH (mm) | 1150x490x2240 |
