Red Jacket® STP
The Red Jacket is a Submersible Turbine Pump (STP) solution that optimizes fuel flow and dispensing. Red Jacket motor performance delivers higher flow rates than any other motor in the industry. Its advanced packer manifold design makes it the industry’s easiest and safest STP to install and service. Available in 3/4 HP to 2 HP configurations and fixed or variable Quick Set® lengths. As a Veeder-Root flagship product line, Red Jacket is backed by the largest network of distributors and authorized service contractors worldwide.
Highlights
Specifications
Downloads
Highlights

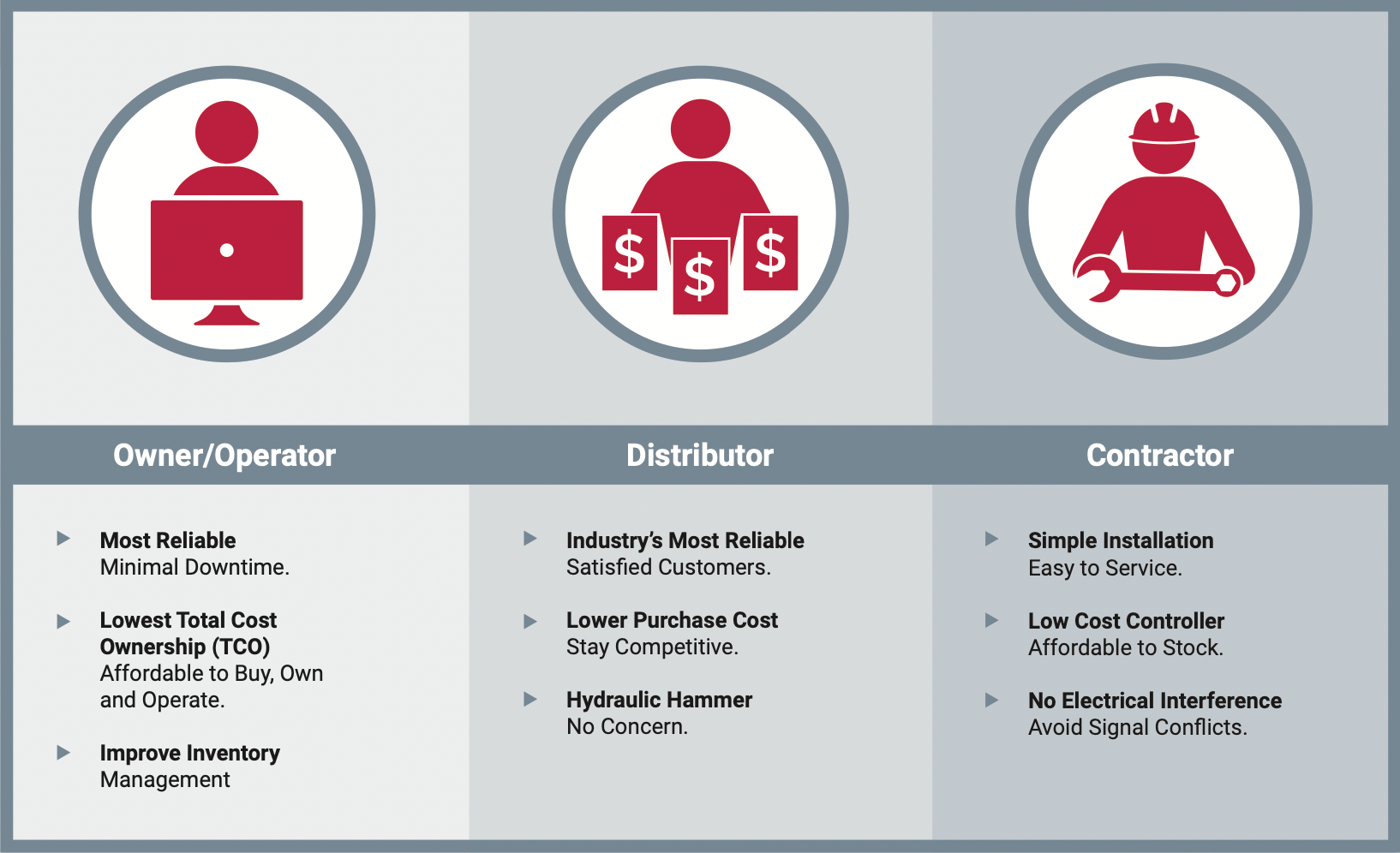

Why Red Jacket?

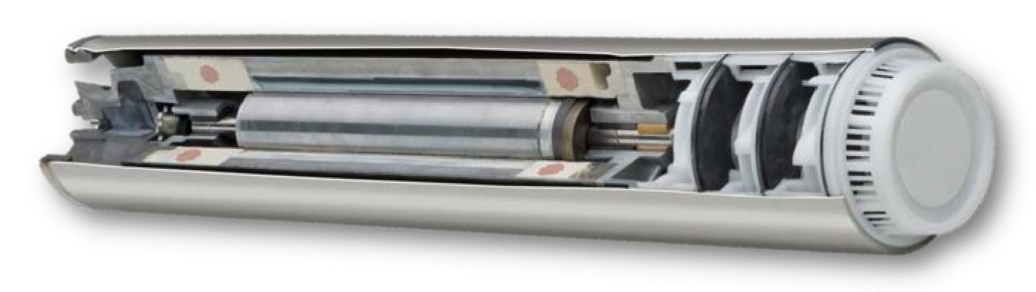

Unitized Motor and Pump (UMP)
| PERFORMANCE |
|
| PROVEN RELIABILITY |
|
| SAFETY |
|
| INDUSTRY EXPERTISE |
|
The Red Jacket Packer Manifold
| FAST INSTALLATION AND SIMPLE SERVICE AND TESTING |
|
Specifications
Fuel Compatibility
- 100% Diesel or Gasoline
- Ethanol, Methanol, MTBE, ETBE or TAME concentrations up to 20%
Motor Sizes Available
- ¾ HP, 60 Hz, 1-phase
- 1 ½ HP, 60 Hz, 1-phase
- X3 1 ½ HP, 60 Hz, 1-phase, high pressure
- LP 2 HP, 60 HZ, 1-phase, low pressure
- 2 HP, 60 Hz, 1-phase
Protective Coatings
N/A
Operation Environment
- Class 1, Group D atmospheres
- Low corrosion environment
- Dry sump space (no water ingress)
Installation Depth Range
- Fixed Length: 3.5’ to 19’
- Quick Set® (Adjustable Length):
- RJ 1 = 74.5” – 105”*
- RJ 2 = 104.4” – 165”
- RJ 3 = 164” – 225”
*Assumes 1.5 HP
Packer Manifold Access Ports
- Siphon Ports:
- 2 available, ¼” NPT
- Vacuums generated up to 25 in Hg
- Line Pressure Port: 1 Available, ¼” NPT
- Vent Port: 1 Available, ¼” NPT
Check Valve Compatibility
- Standard VR ready check valve for PLLD (410152-001)
- High pressure check valve for high pressure applications (410152-002)
UL Listings
- 100% Diesel
- 100% Gasoline
- Gasoline and up to: 10% Ethanol, 15% Methanol, 20% MTBE, 20% ETBE, 20% TAME
Other Agency Listings
cUL
