Compressor Pumps
Max MSV 20

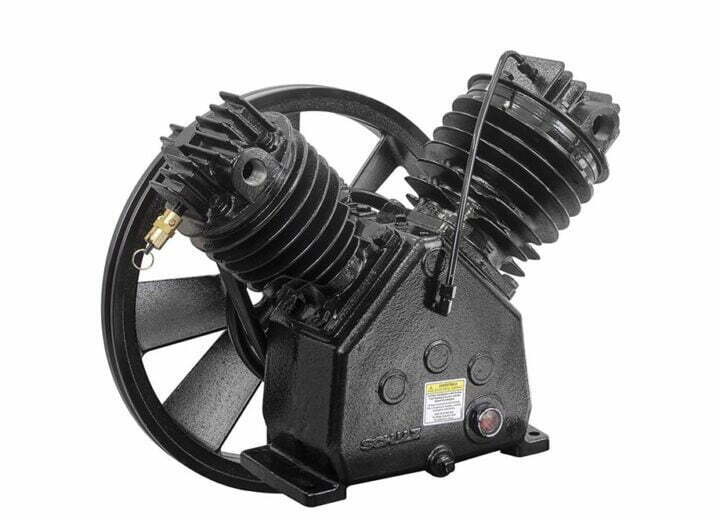

The lubricated compressor pumps of Schulz are versatile and strong. With oblongs in the base, they can be used for assembly on air tanks or as a spare part for several brands. Produced in cast iron, they ensure resistance and durability for professional and industrial applications. The heads are available in the flows of 5.2 to 80 cfm (cubic feet/min). To facilitate assembly, the heads are supplied with flywheel and motor pulley.
Specifications
Downloads
Specifications
Technical Features
Air Displacement (CFM) | 20 |
Deslocamento teórico (l/min) | 566 |
Dimensions L x W x H (mm) | 520 x 390 x 385 |
Gross Weight (kg) | 64 |
Net Weight (kg) | 47 |
Motor Power (hp) | 5 |
Maximum Operating Pressure (bar) | 12.0 |
Maximum Operating Pressure (psi) | 175 |
