Fixed Speed Single Phase
A MAJOR LEAP FORWARD IN PUMP CONTROL
Built upon the solid FE PETRO® brand smart controller platform, Guardian Series™ controllers feature an enhanced user interface, greater functionality, and higher performance compared to standard control boxes.
GET MORE OUT OF YOUR PUMP CONTROLLER
Guardian Series™ intelligent pump controllers let station owners get the most out of their fixed speed pump controller with enhanced functionality and communication capabilities as well as simplifed setup and operation.
INTELLIGENT PUMP CONTROLIntelligently control STPs with features including dry run prevention, fault status notifications, and the ability to communicate remotely with STPs via the Automatic Tank Gauge (ATG). | EASY SETUPWith a single press of the “Calibrate” button, the controller will automatically learn the electrical characteristics of the STP. |

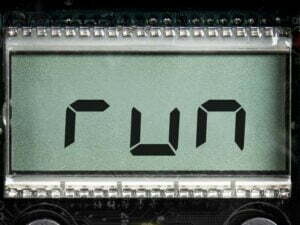

FASTER TROUBLESHOOTINGService technicians can quickly review the last five abnormal conditions via the LCD display, allowing for faster troubleshooting of intermittent conditions. |

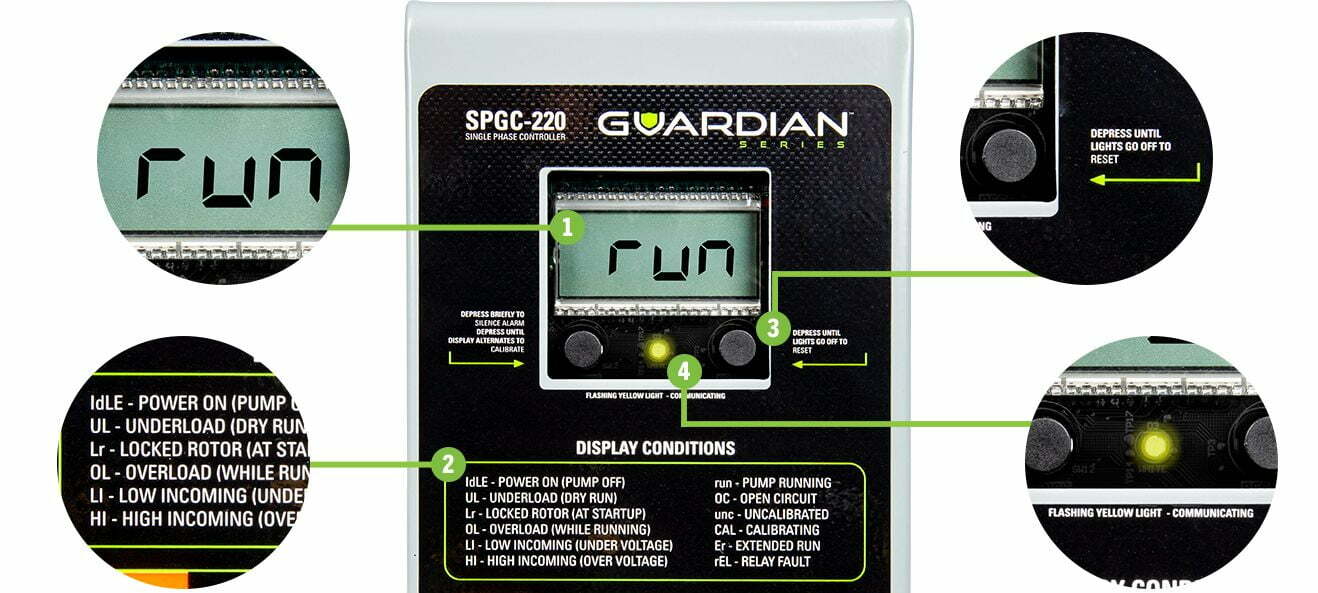

ENHANCED USER INTERFACE
The all-new Guardian Series™ user interface includes features designed to make setup, operation, and maintenance easier for every user.
1. LCD Display
A 3½” digit LCD display provides readable running and fault status for improved troubleshooting.
2. Output Conditions
Readable output conditions are listed on the front panel for quick reference.
3. User Interface
Separate Reset and Silence/Calibrate push buttons provide clear interaction with the controller.
4. Communication LED
A yellow LED provides a visual confirmation of communication between the controller and the STP.
UPDATED RELIABILITY, PROTECTION, & COMMUNICATION
Reliability
Updated surge protection and pump relay circuitry improves the controller’s ability to handle challenging incoming power.
Protection
Over voltage protection and enhanced underload detection better protects pumping system equipment.
Communication
Updated RS-485 communication provides seamless manifolded pump and Turbine Pump Interface operation.
ADVANCED SUBMERSIBLE PUMP CONTROL

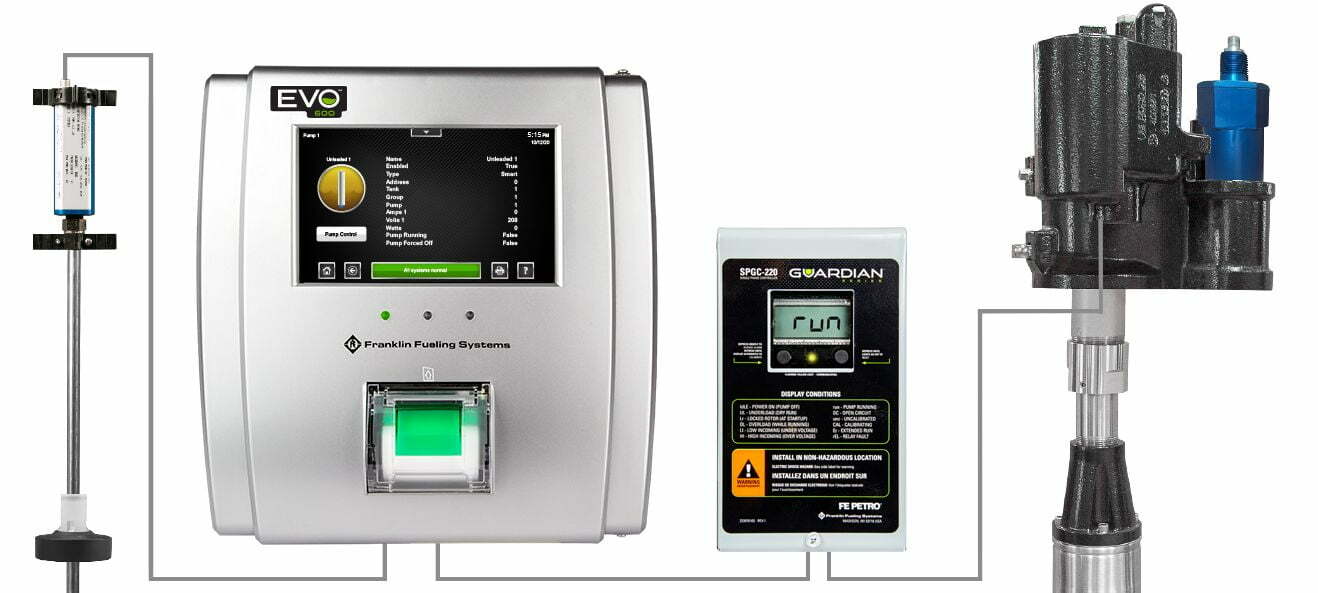

TPI is a powerful tool that creates a network between the Guardian™ Series controller and EVO™ Series Automatic Tank Gauges (ATGs). Through TPI, the ATG has access to the submersible pumping system status and the capability to react with intelligence that pump controllers alone cannot. The devices share data to provide enhanced system capabilities.
TPI Capabilities
- Remote access to STPs
- Pump in water prevention
- Primary and secondary pump management
- Response automation
- Clogged STP intake escalation
- Adjusted pump priority (leveling on the fly)
- STP history reporting
- Overfill protection and automation
- Advanced pump control
- Compatible with FE PETRO® single-phase 2 Hp, 1½ Hp, ⅓ Hp, and ¾ Hp fixed speed STPs, as well as comparable competitive STPs.
- Separate “Reset” and “Silence/Calibrate” push buttons provide clear interaction with the controller.
- Over voltage protection and enhanced underload detection protects pumping system equipment.
- 3½ digit LCD provides readable running and fault status for quick troubleshooting.
- Automatically logs the last five abnormal conditions seen in the pumping system. This data is retained in non-volatile memory. Service technicians can quickly view a history of abnormal conditions, which is particularly useful when troubleshooting intermittent conditions.
- With a single press of the “Calibrate” button, the controller will automatically learn the electrical characteristics of the STP for easy setup or retrofit.
General
- Dimensions: 8½” × 5” × 3” (215 mm × 127 mm × 76 mm)
- Motor contact rating: 2 Hp, 200-250 VAC, 50/60 Hz, Single Phase
- Switch hook rating: 120-240 VAC, 50/60 Hz
- An integrated RS 485 com port is provided to connect Guardian Series™ Controllers to EVO™ Series automatic tank gauges (ATGs) for enhanced functionality via Turbine Pump Interface (TPI).
Approvals/Certifications
- cULus listed.
- CE certified.
- ISO 9001:2015 certified manufacturer.
